PRODUCT SPECIFICATIONS

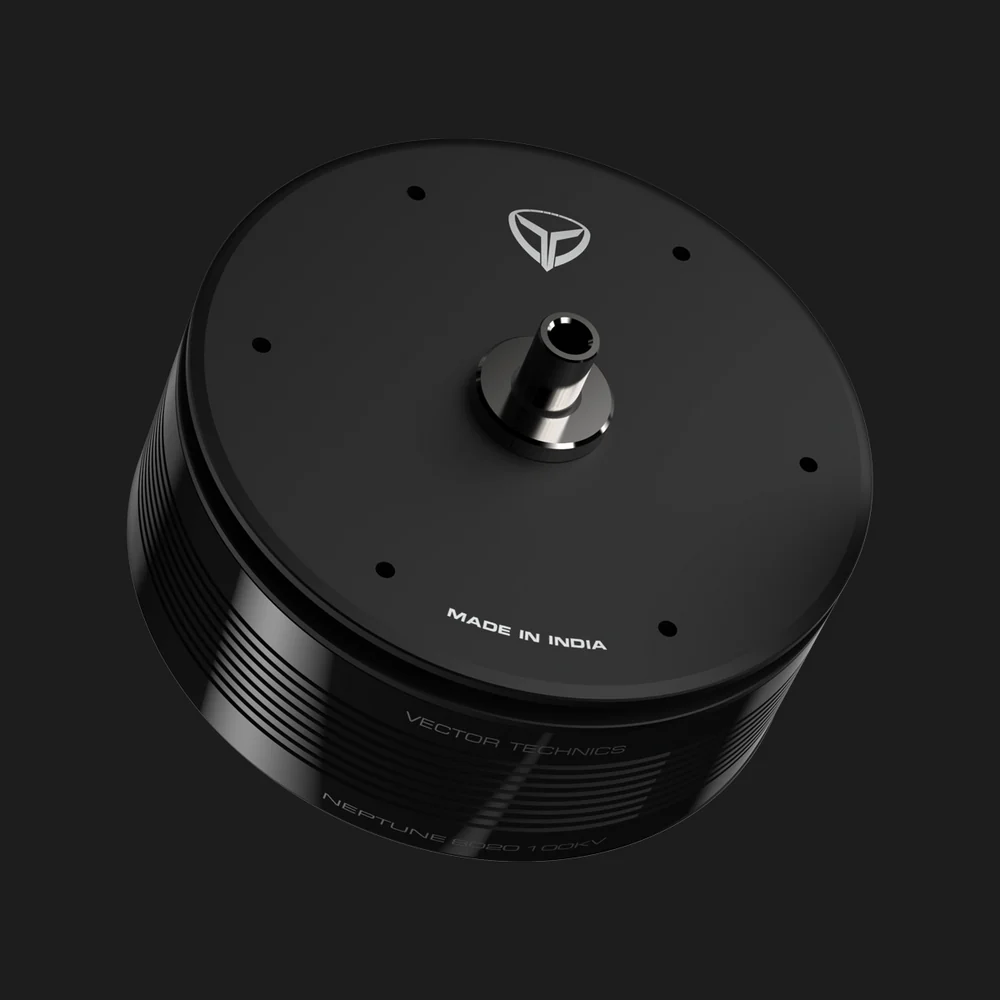

8020 100KV
| Kv (Motor Velocity Constant) | 100 RPM/V |
| Kt (Motor Torque Constant) | 0.124 Nm/A @ 3000 rpm |
| Maximum Continuous Current* | 40 A (180 s) |
| Maximum Continuous Power* | 1900 W (180 s) |
| Power Density |
2.70 W/g (Rated),3.81 W/g (Maximum)
|
| Voltage Range | 44V to 52V (12S LiHV) |
| Io (@48V) | 2.1 A |
| Inductance per phase (Winding Inductance) | 0.054 mH ( ≃0.03) |
| Rph (Wind Resistance per phase) | 0.07 Ω ( ≃0.03) |
| Stator Poles | 36S(36S40P) |
| Magnetic Poles | 40P(36S40P) |
| Bearings | Dual, 6001-2RSL |
| Stick Out Shaft Diameter | ø8 mm |
| Motor Diameter | ø89.4 mm |
| Motor Length | 45.5mm |
| Motor Weight | 713G |
| Mount Pattern @ 90 deg | 4xM4 ↧ 6.5mm ø40mm
4xM4 ↧ 6.5mm ø51mm 4xM5 ↧6.5mm ø51mm |
| Propeller Blade Size* | Max Propller Size – 34inch |
| Propeller Mount Pattern | 6xM3 ↧7mm ø71.5mm 4XM4↧ 8mm ø23mm , 4XM3 ↧8mm ø20mm., |
| Propeller | Voltage | PWM | RPM | Thrust (g) | Torque (N*m) | Current (A) | Electrical Power | Efficiency | Temperature (Celcius) |
| 30 * 10″ CFRP Vector Technics Foldable | 49.8 | 1300 | 1167 | 1356 | 0.6 | 2 | 99.6 | 13.7 | 66.6 |
| 49.7 | 1400 | 1599 | 2578 | 1.12 | 4.8 | 238.6 | 10.7 | 66.3 | |
| 49.4 | 1500 | 2101 | 4611 | 1.95 | 10.9 | 538.5 | 8.6 | 65.2 | |
| 49 | 1600 | 2525 | 6672 | 2.76 | 18.6 | 911.4 | 7.3 | 64.1 | |
| 48.5 | 1700 | 2905 | 8790 | 3.58 | 28.5 | 1382.3 | 6.4 | 61.8 | |
| 48 | 1800 | 3236 | 10743 | 4.33 | 39.3 | 1886.4 | 5.7 | 58.8 | |
| 47.4 | 1900 | 3568 | 12433 | 4.99 | 51.5 | 2441.1 | 5.1 | 55.4 | |
| 47.2 | 1950 | 3673 | 13195 | 5.27 | 56.5 | 2666.8 | 5 | 53.1 | |
| 47.1 | 2000 | 3672 | 13319 | 5.29 | 56.7 | 2670.6 | 5 | 51.1 |
| Propeller | Voltage | PWM | RPM | Thrust (g) | Torque (N*m) | Current (A) | Electrical Power | Efficiency | Temperature (Celcius) |
| 32 * 10.6″ Mejzlik Foldable | 49.9 | 1300 | 1187 | 1356 | 0.53 | 1.9 | 94.8 | 14.5 | 69 |
| 49.7 | 1400 | 1630 | 2507 | 0.98 | 4.4 | 218.7 | 11.5 | 68.7 | |
| 49.5 | 1500 | 2161 | 4438 | 1.72 | 9.8 | 485.1 | 9.2 | 67.6 | |
| 49.1 | 1600 | 2584 | 6485 | 2.51 | 17 | 834.7 | 7.7 | 66 | |
| 48.6 | 1700 | 2968 | 8694 | 3.35 | 26.7 | 1297.6 | 6.7 | 63.9 | |
| 48 | 1800 | 3279 | 10800 | 4.21 | 38.2 | 1833.6 | 5.9 | 60.8 | |
| 47.4 | 1900 | 3572 | 12959 | 5.05 | 51.9 | 2460.1 | 5.3 | 56.7 | |
| 47.1 | 1950 | 3666 | 13789 | 5.38 | 57.4 | 2703.5 | 5.1 | 54.2 | |
| 47.1 | 2000 | 3660 | 13812 | 5.41 | 57.5 | 2708.2 | 5.1 | 52 |
8020 120KV
| Kv (Motor Velocity Constant) | 120 RPM/V |
| Kt (Motor Torque Constant) | 0.106 Nm/A @ 3177 rpm |
| Maximum Continuous Current* | 50 A (180 s) |
| Maximum Continuous Power* | 2408 W (180 s) |
| Power Denisity | 3.4 W/g (Rated), 4.7 W/g (Maximum) |
| Voltage Range | 44V to 52V (12S LiHV) |
| Io (@48V) | 3.0 A |
| Inductance per phase (Winding Inductance) | 0.040 mH ( ≃0.03) |
| Rph (Wind Resistance per phase) | 0.06 Ω ( ≃0.03) |
| Stator Poles | 36S(36S40P) |
| Magnetic Poles | 40P(36S40P) |
| Bearings | Dual, 6001-2RSL |
| Stick Out Shaft Diameter | ø8 mm |
| Motor Diameter | ø89.4 mm |
| Motor Length | 45.5mm |
| Motor Weight | 705g |
| Mount Pattern @ 90 deg | 4xM4 ↧ 6.5mm ø40mm
4xM4 ↧ 6.5mm ø51mm 4xM5 ↧6.5mm ø51mm |
| Propeller Blade Size* | Max Propller Size – 34inch |
| Propeller Mount Pattern | 6xM3 ↧7mm ø71.5mm 4XM4↧ 8mm ø23mm , 4XM3 ↧8mm ø20mm. |
| Propeller | Voltage | PWM | RPM | Thrust (g) | Torque (N*m) | Current (A) | Electrical Power | Efficiency | Temperature (Celcius) |
| 30 * 10″ CFRP Vector Technics Foldable | 49.6 | 1300 | 1325 | 1840 | 0.8 | 3.1 | 153.8 | 12.1 | 90.8 |
| 49.4 | 1400 | 1824 | 3404 | 1.47 | 7.5 | 370.5 | 9.2 | 89.8 | |
| 49 | 1500 | 2387 | 5927 | 2.45 | 16.3 | 798.7 | 7.4 | 88.2 | |
| 48.4 | 1600 | 2813 | 8300 | 3.38 | 27.6 | 1335.8 | 6.2 | 85.3 | |
| 47.7 | 1700 | 3177 | 10362 | 4.19 | 40.2 | 1917.5 | 5.4 | 80.9 | |
| 47 | 1800 | 3515 | 12427 | 4.94 | 54.8 | 2575.6 | 4.8 | 75.2 | |
| 46.2 | 1900 | 3828 | 14211 | 5.6 | 70 | 3234 | 4.4 | 68.2 | |
| 46 | 1950 | 3958 | 14719 | 5.78 | 75.6 | 3477.6 | 4.2 | 64.5 | |
| 45.9 | 2000 | 3950 | 14853 | 5.83 | 75.7 | 3474.6 | 4.3 | 61 |
| Propeller | Voltage | PWM | RPM | Thrust (g) | Torque (N*m) | Current (A) | Electrical Power | Efficiency | Temperature (Celcius) |
| 32 * 10.6″ Mejzlik Foldable | 49.7 | 1300 | 1346 | 1779 | 0.71 | 2.8 | 139.2 | 12.9 | 75.3 |
| 49.8 | 1400 | 1912 | 3602 | 1.37 | 7.2 | 358.6 | 10 | 73.2 | |
| 49.3 | 1500 | 2443 | 6163 | 2.41 | 16 | 788.8 | 7.8 | 71.8 | |
| 48.7 | 1600 | 2892 | 8821 | 3.4 | 27.4 | 1334.4 | 6.6 | 69.6 | |
| 48.1 | 1700 | 3256 | 11119 | 4.31 | 40.7 | 1957.7 | 5.7 | 65.6 | |
| 47.3 | 1800 | 3575 | 13432 | 5.24 | 57.1 | 2700.8 | 5 | 63.7 | |
| 46.2 | 1900 | 3790 | 15202 | 5.98 | 73.8 | 3409.6 | 4.5 | 61.5 | |
| 45.8 | 1930 | 3853 | 15744 | 6.14 | 79.8 | 3654.8 | 4.3 | 59.8 | |
| 2000 |
