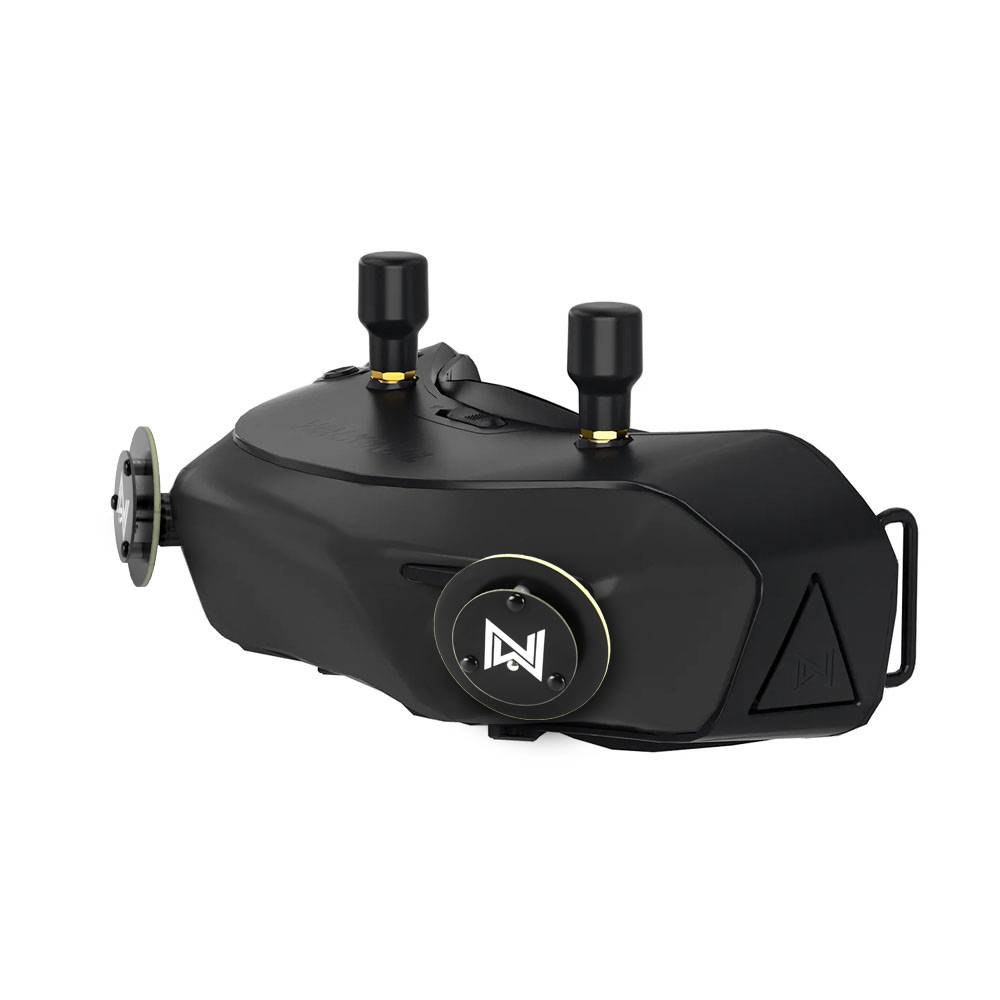

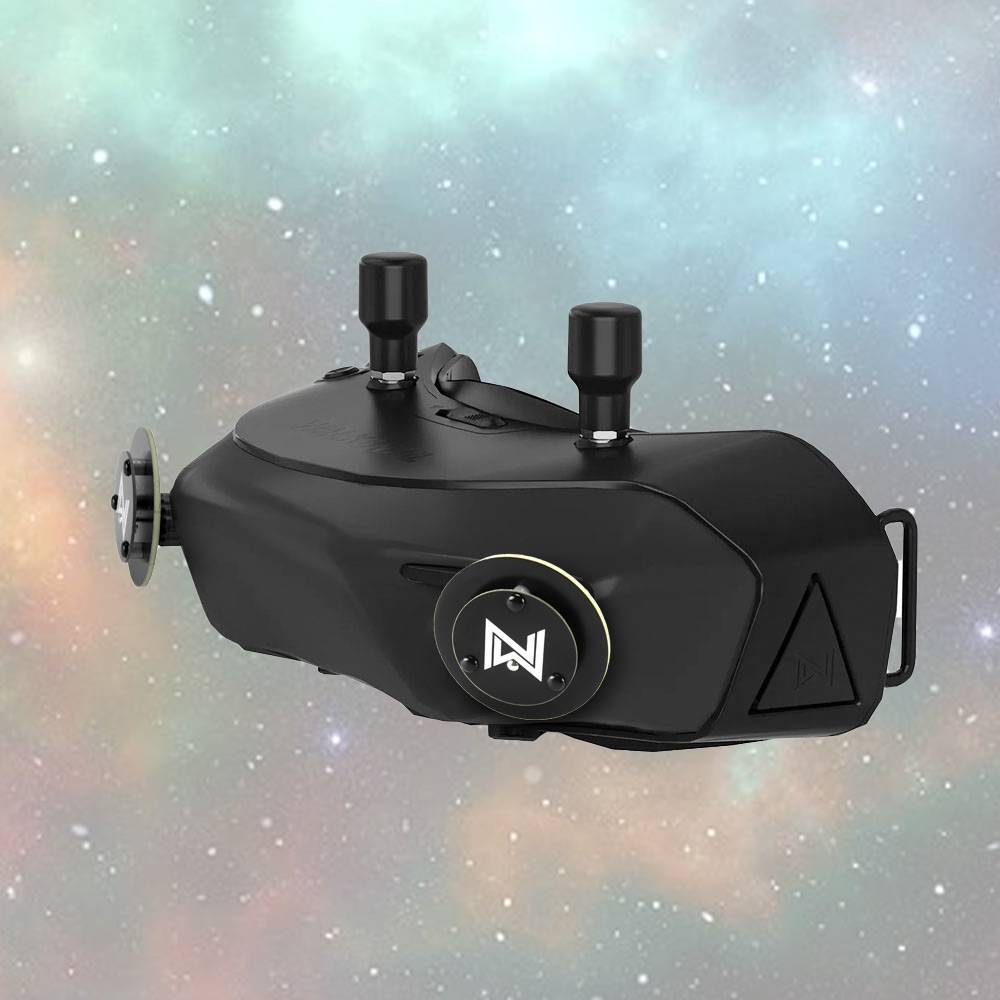

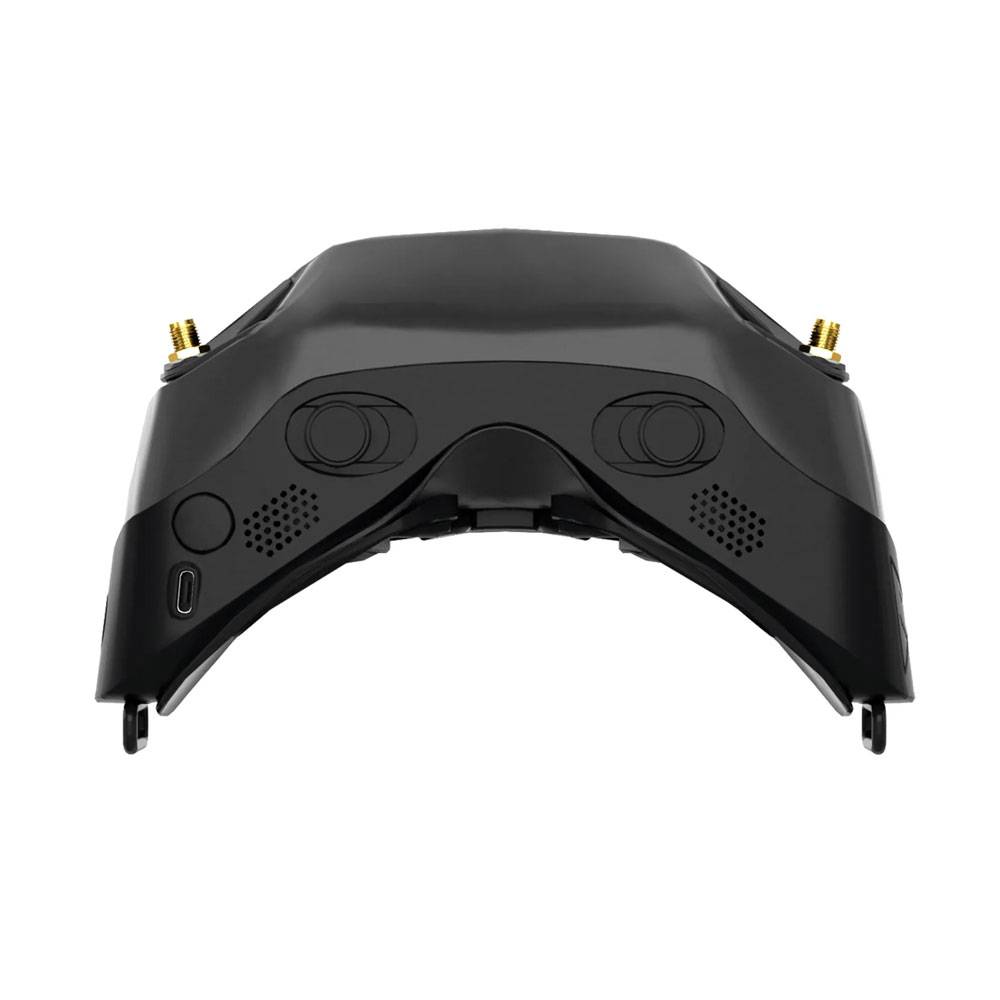

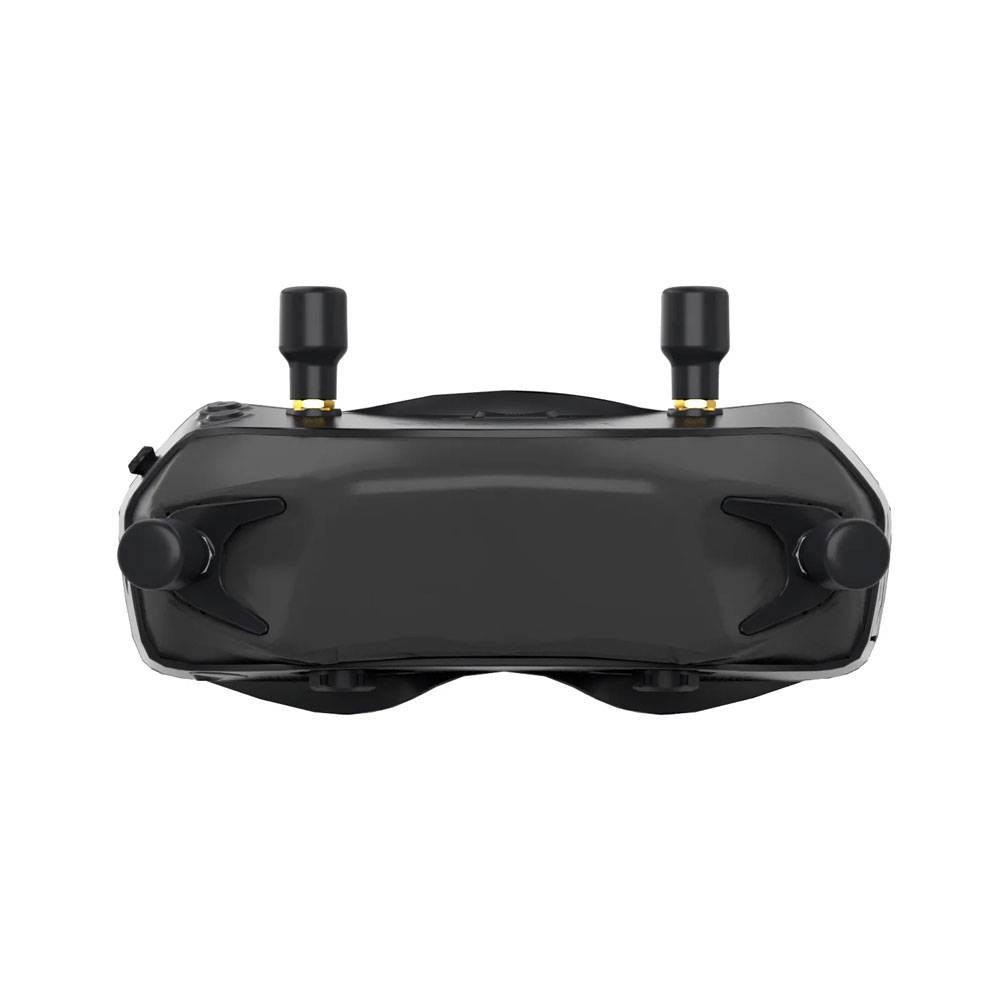

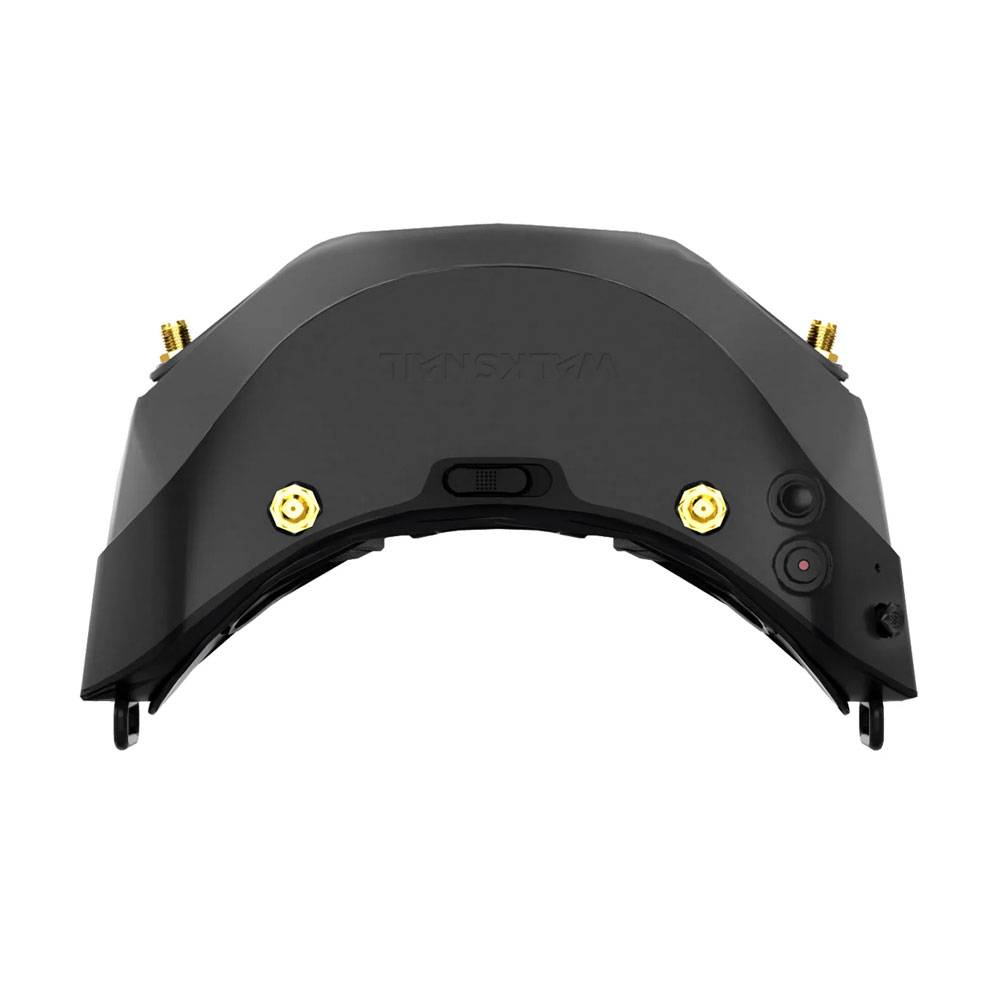

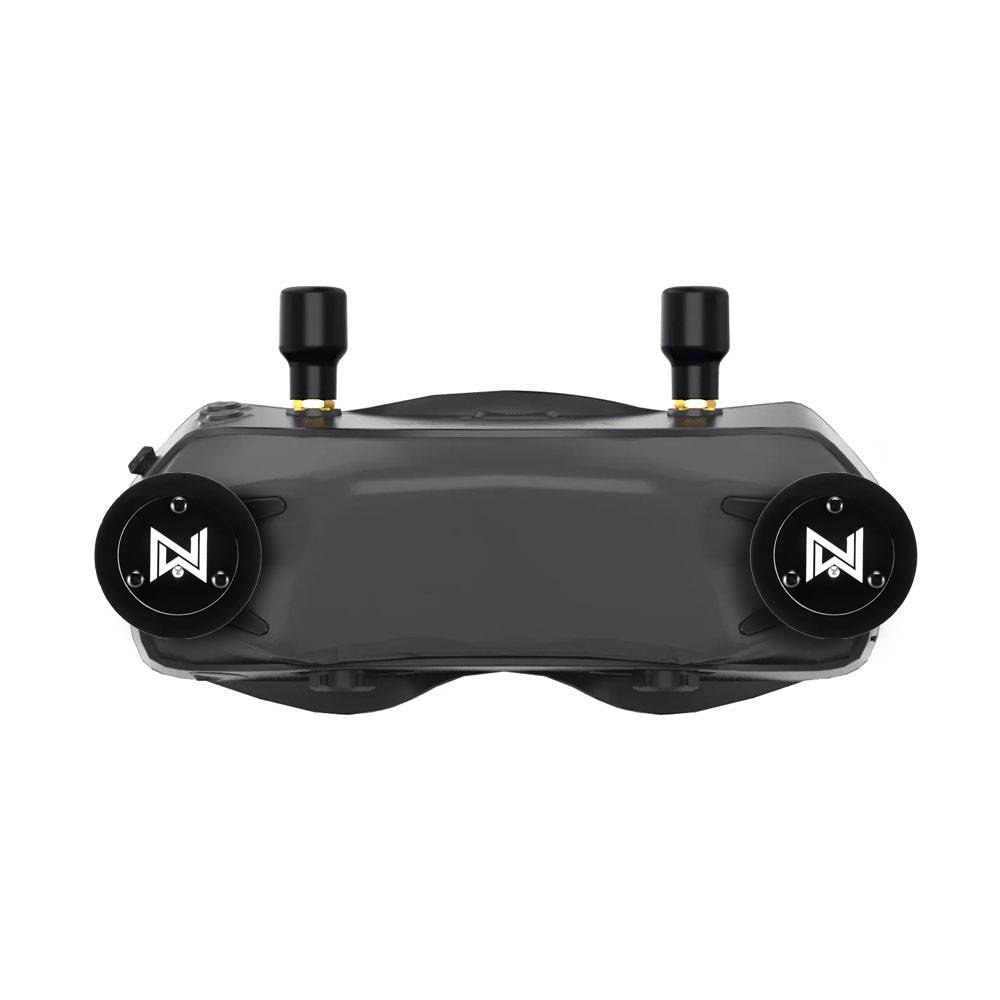

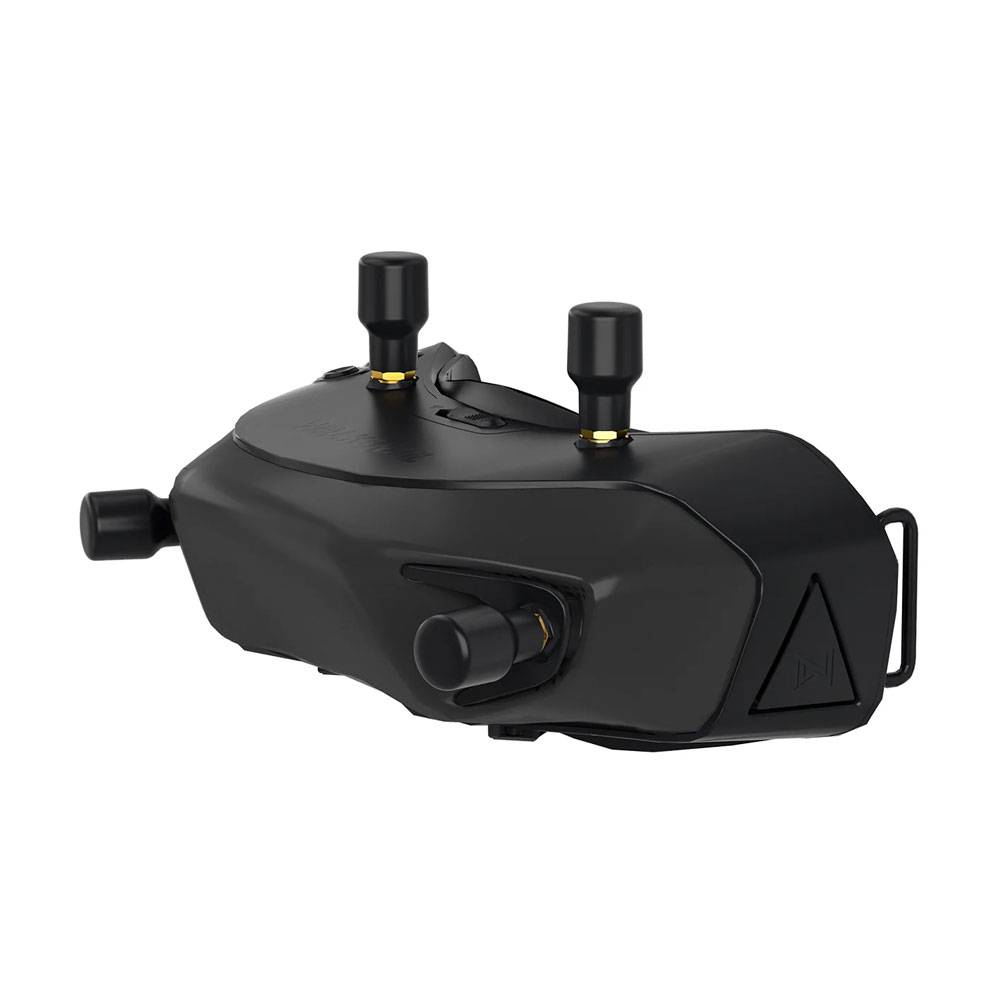

Walksnail Avatar Digital HD FPV Goggles w/ Patch Antennas

The Walksnail Avatar Digital HD FPV Goggles feature high-fidelity Full HD OLED displays and support a new 1080p video transmission protocol in a compact design. These goggles are designed as lightweight mini-size goggles with 46° FOV and focus adjustment with HDMI output.

Note: Shipments after 9/1/2022 include both the Red Bird Antennas and the new Walksnail Patch Antennas.

• Customizable Fit with Optional Faceplate Pad Accessories
• Red Bird LHCP 5.8GHz Goggle Antennas
• HD Video Output via USB-C Connector
• Supports Betaflight Canvas Mode
• Walksnail Avatar Patch Antennas
• Adjustable Anti-Fog Ventilation
• On/Off Power Button
• Integrated HD DVR
• Focus Adjustment
• 46° FOV

AVATAR HD GOGGLES

• Transmitter Power: FCC: <30dBm: CE: <14dBm: SRRC: <20dBm: MIC: <25dBm
• Micro Displays: Full HD 1080p OLED Dual Micro Displays
• Inter-Pupillary Distance (IPD): 57 ~ 70mm (adjustable)
• I/O Interface: Type-C, MicroSD Card, DC 5.5×2.1mm
• Adjustable Focus Range: +2 to -6 Diopter
• Communication Frequency 5.8GHz
• IPD Mechanical Range: 28-70mm
• Power Input: 6V-25.2V (2S-6S)
• Screen Resolution: 1920×1080
• IPD Visual Range: 54-74mm
• Model: Avatar HD Goggles
• SD Card: Supports 256Gb
• HDMI Output: Supported
• Field of View (FOV): 46°
• Screen Size: .49 Inches

RED BIRD ANTENNA

• Cross-Polarization Rejection: -15 to -30dBi
• Radiation Efficiency: >97%
• Dimensions: 24.8×15.3mm
• Bandwidth: 5.6-6GHz
• Average Gain: 1.9dBi
• Connector: RP-SMA
• Polarization: LHCP
• Model: Red Bird
• Weight: 4.2g
• VSWR: <1.3

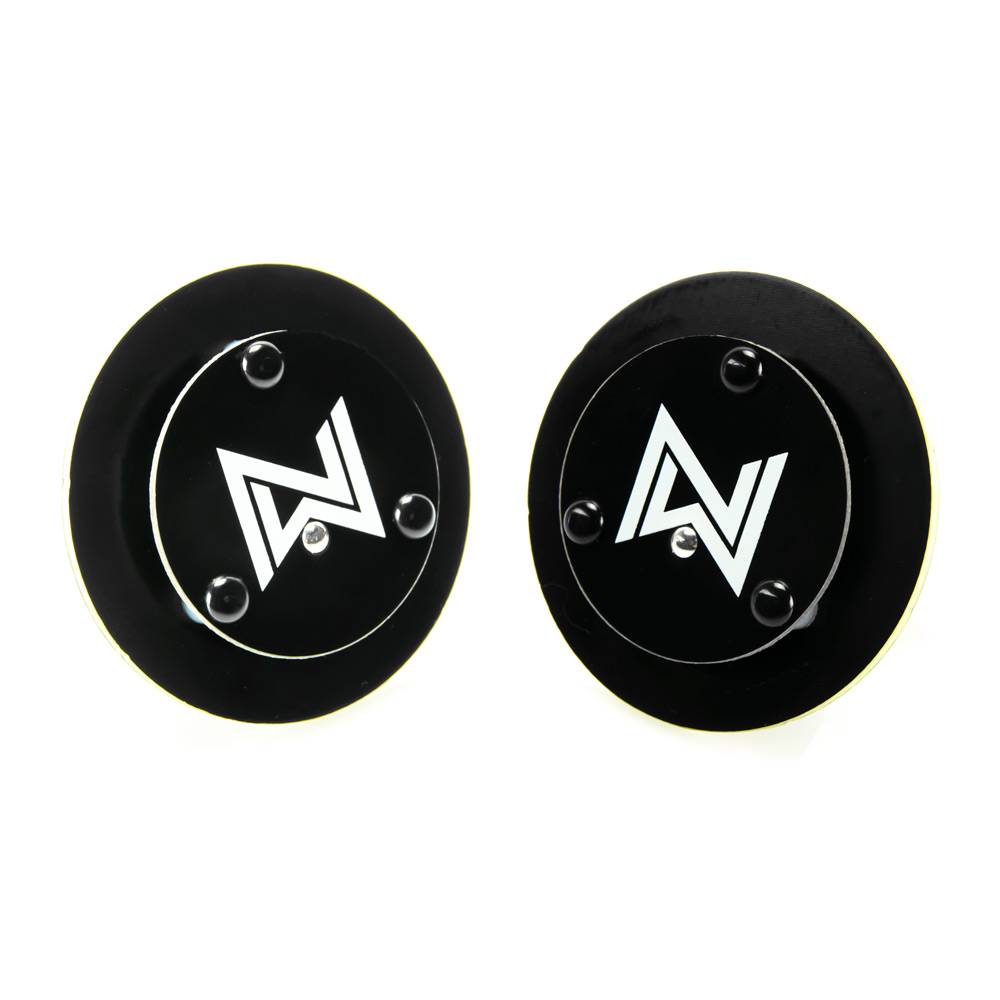

AVATAR PATCH ANTENNA

• Frequency range (MHz): 5725-5875
• Ambient temperature (℃): -40+60
• HPBW: 75°H-plane75°E-plane
• Front to back ratio (dB): >10
• Input Impedance (Ω): 50
• Power Capacity (W): 10
• Interface: RP-SMA
• Polarization: LHCP
• Gain (dBi): 8
• VSWR: <1.5

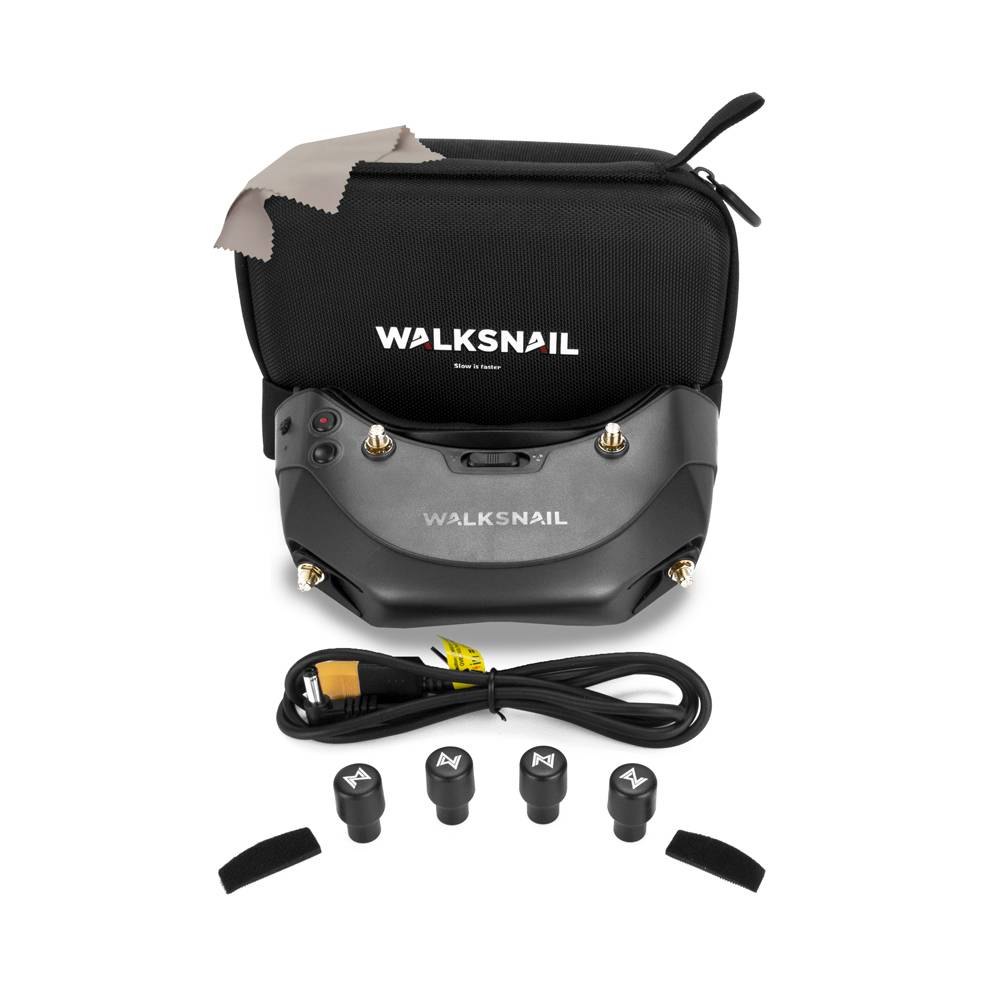

  Includes

  • 1x Walksnail Avatar Digital HD FPV Goggles
  • 2x Walksnail Avatar Patch Antennas
  • 1x Lens Cleaning Cloth
  • 2x Red Bird Antennas
  • 1x XT60 Power Cable
  • 1x Goggle Strap
  • 1x Carry Case
