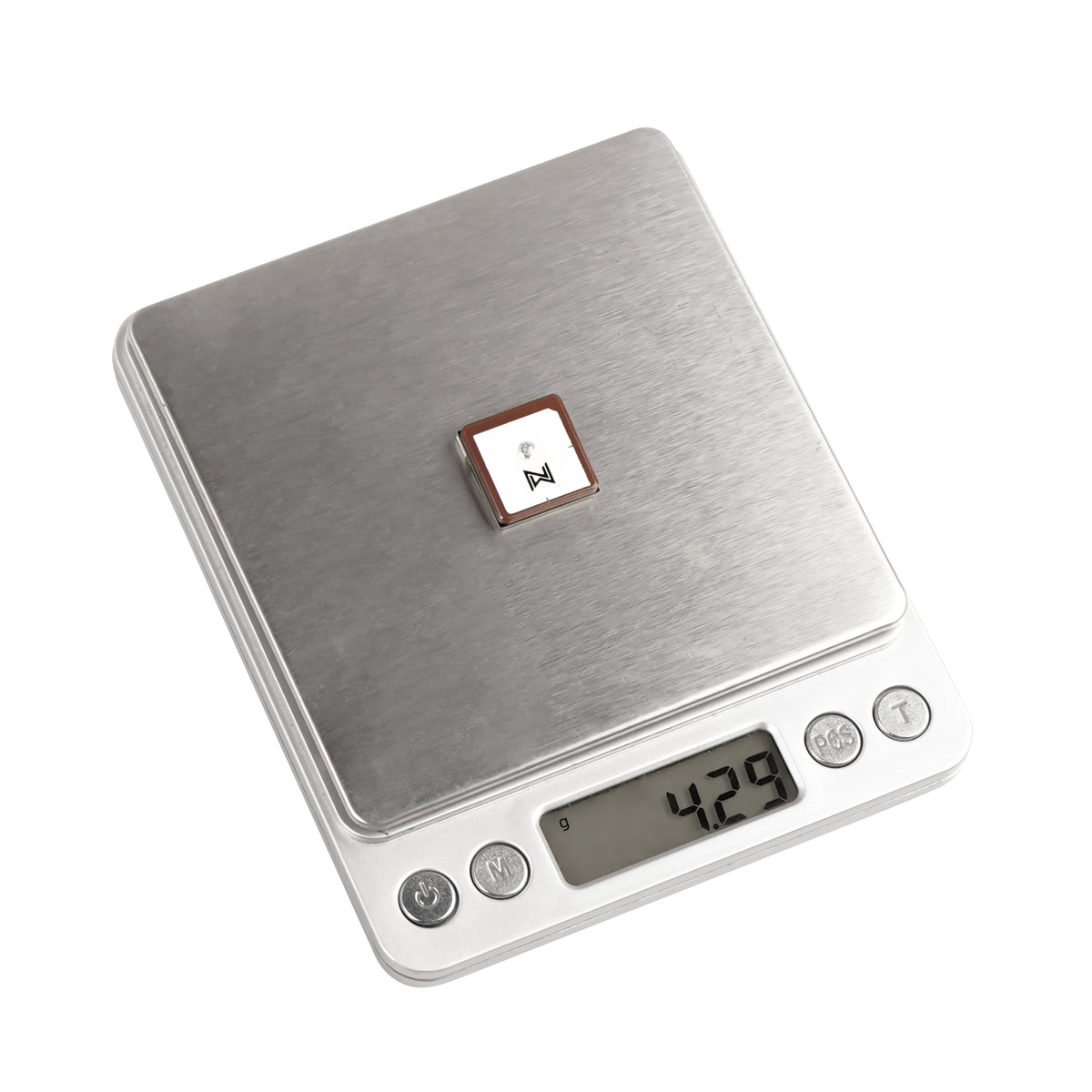

- With small size, light weight, fast positioning, and stable connection. It is suitable for FPV, RC airplane, quadcopter and others to enhance the flight experience.
![](https://cdn.shopify.com/s/files/1/0036/3921/4169/files/2_f0db5143-bb38-4dea-9e01-937cf3c071a6.jpg?v=1679020630)

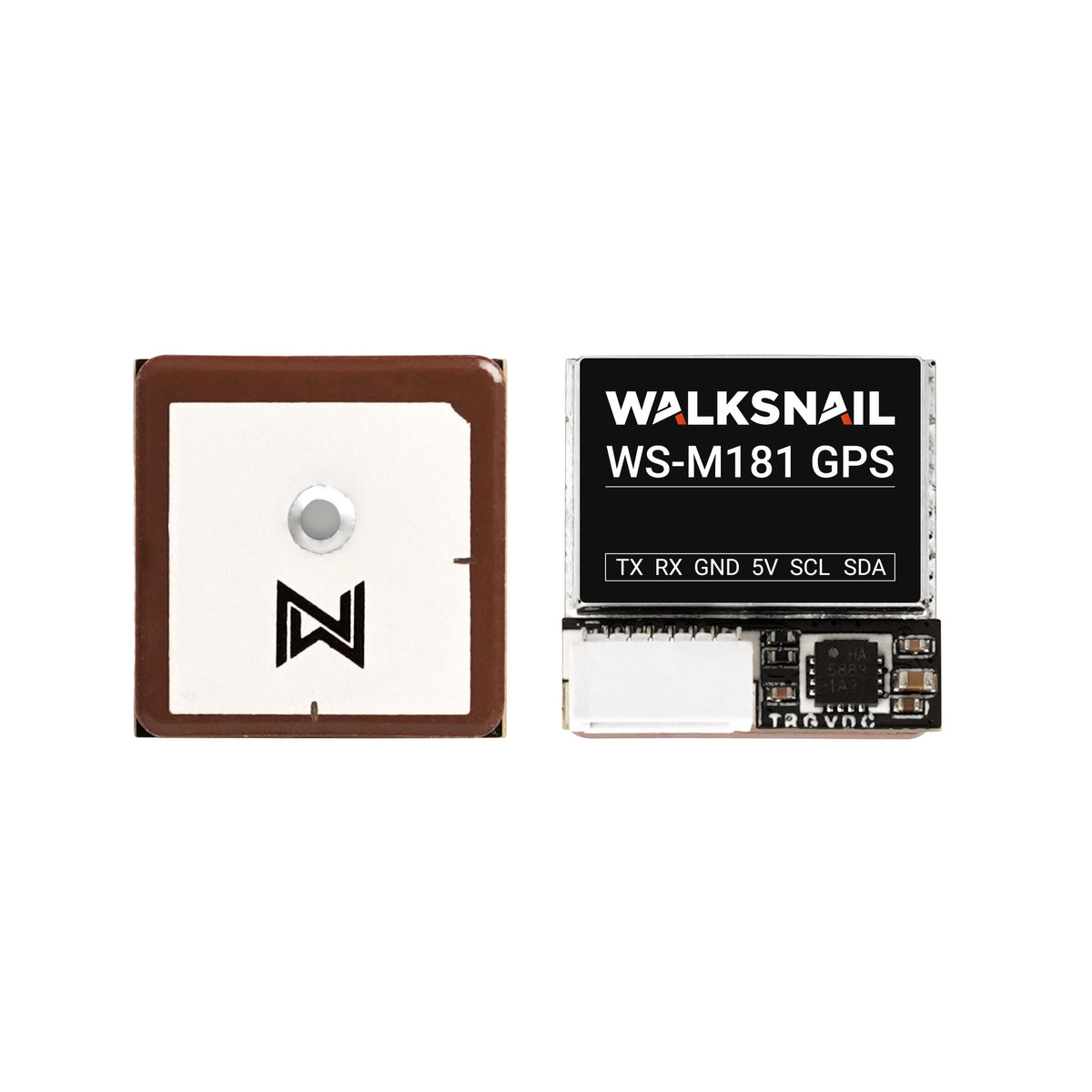

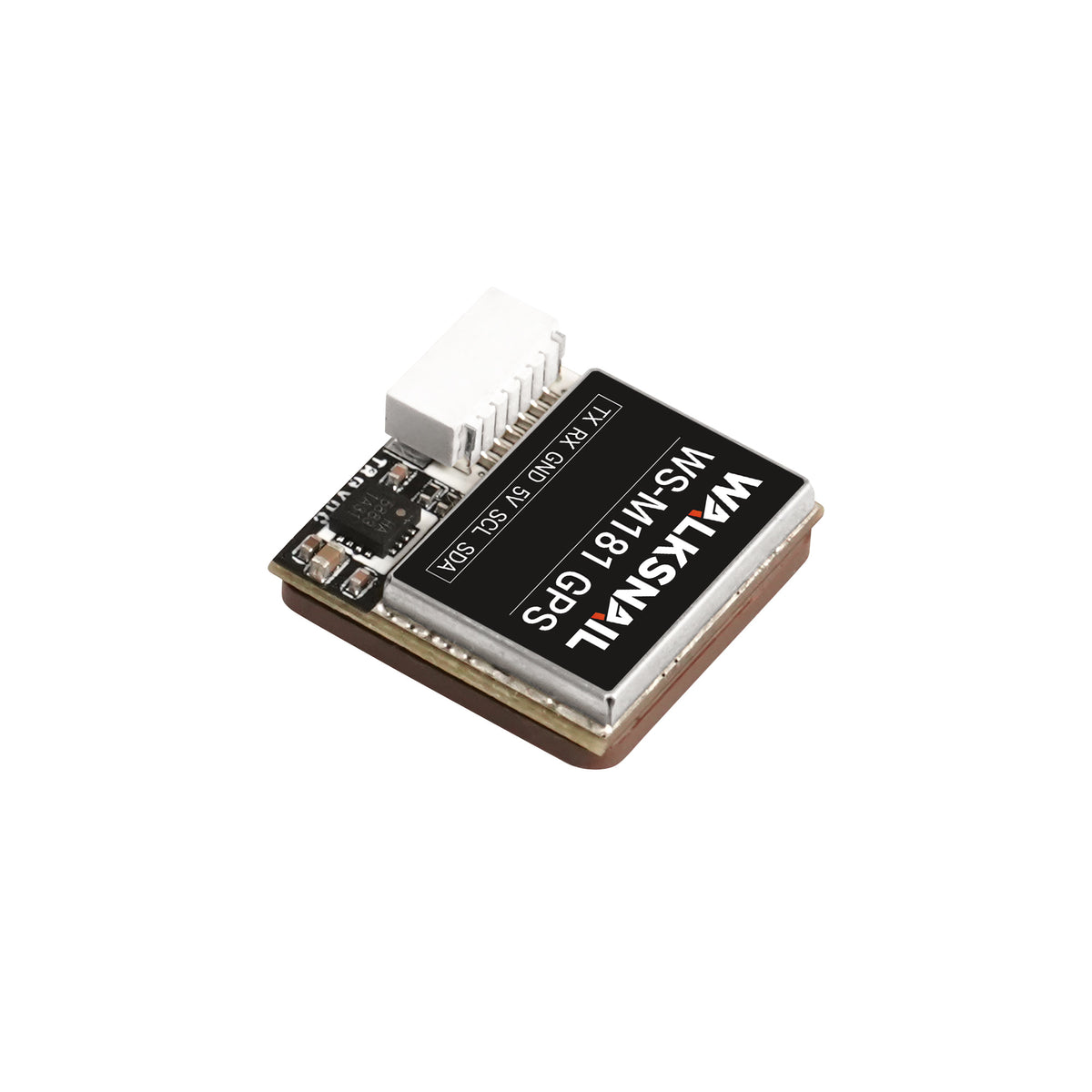

- Featuring the u-blox M10 platform UBX-M10050 GNSS chipset and BUILT-IN QMC5883 MAG, the module offers stronger performance and more accurate positioning.
![](https://cdn.shopify.com/s/files/1/0036/3921/4169/files/3_6568a4b2-2a06-4457-bc15-1fab8dd09938.jpg?v=1679020729)

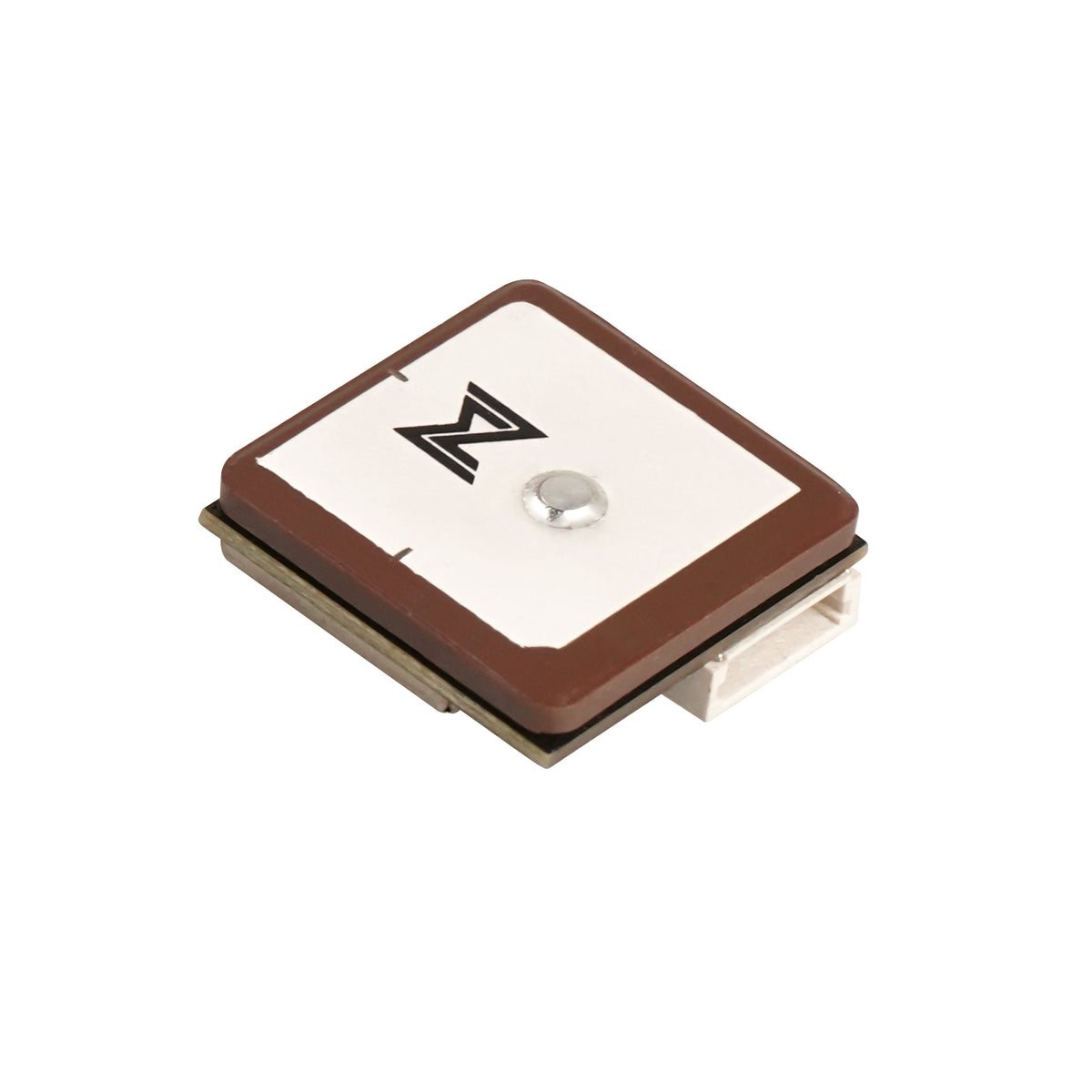

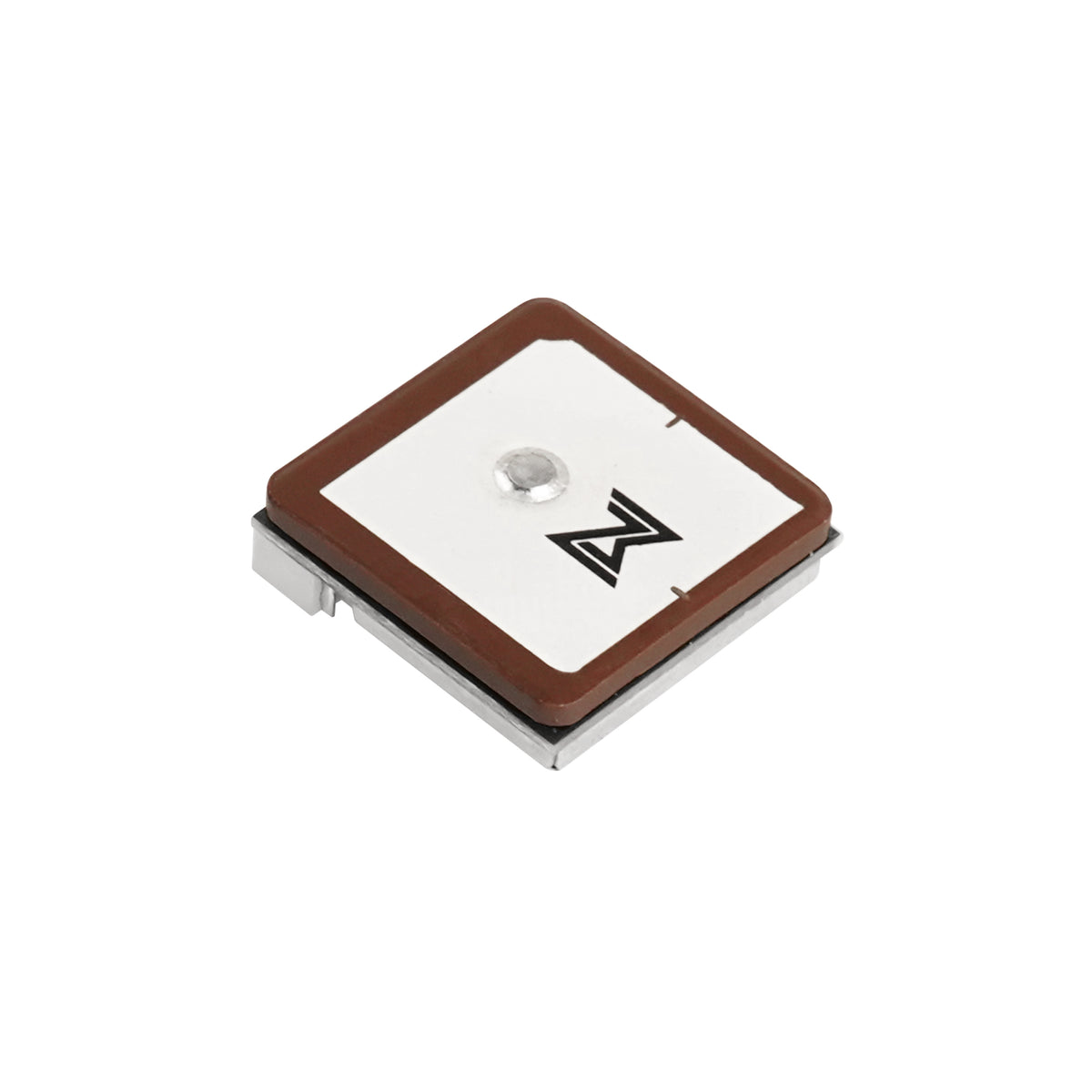

- The ultra-thin ceramic antenna uses a special spray painting process to prevent oxidation and scratching, ensuring consistent positioning performance.
![](https://cdn.shopify.com/s/files/1/0036/3921/4169/files/4_b7d9b5ea-eb0d-46d0-a19e-1f693267d771.jpg?v=1679020781)
- The built-in battery can realize hot start and realize positioning quickly.
![](https://cdn.shopify.com/s/files/1/0036/3921/4169/files/5-1.jpg?v=1679036778)
- It offers six positioning modes, providing more flexible combinations (default GPS + GLONASS + BDS multi-mode positioning).The measured maximum number of search sats can cover 32pcs.
![](https://cdn.shopify.com/s/files/1/0036/3921/4169/files/6_4fb32d61-fb98-4326-975a-ffc407a0b95d.jpg?v=1679020922)
Note:
Because the GPS chip is a new 10th generation chip, the flight controller needs to flash firmware Betaflight 4.3.0 and above, and the firmware below 4.29 uses the NMEA protocol.
Specification | |
name | Walksnail WS-M181GPS |
Chip: | M10 (ten generation chip) |
Frequency: | GPS L1,GLONASS L1,BDSB1,GALILEO E1,SBAS L1.QZSS L1 |
Power: | 5V |

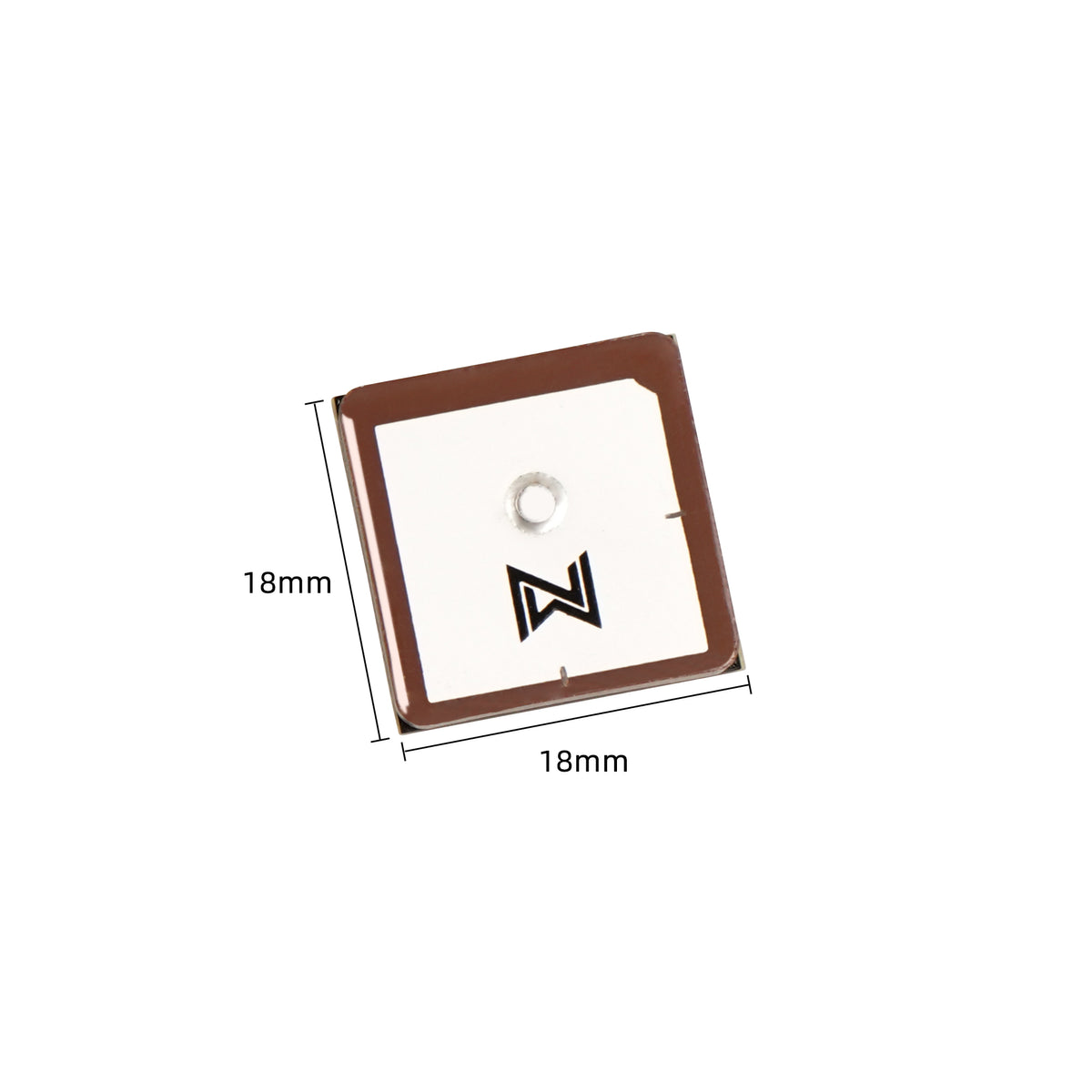

Size: | 18mm*18mm*4.6mm |
Antenna: | ceramic antenna (oil spraying process, prevent scratching and oxidation) |
Receiving channels: | 72 search channels |
Compass: | QMC5883 |
Baud rate: | 115200dps |
Output protocol: | NMEA UBLOX (dual protocol) |
Output frequency: | 1Hz-10Hz, Default 10Hz |
Speed accuracy: | 0.05m/s |
Horizontal positioning accuracy: | 2D ACC1.5m(open air) |
Receiving sensitivity: | Trace-162dBm
Capture -160dBm |
Dynamic characteristics: | |
Altitude: | 50000m |
Speed: | 500m/s |
Acceleration: | 4G |
Operating temperature: | -40℃-+85℃ |
Storage temperature: | -40℃-+105℃ |
