Powerful, Precise, and Reliable ESC for UAV Applications
The ZERODRAG BOOST AM32 55A 4-in-1 ESC delivers top-notch power management and unparalleled performance for high-performance UAVs. Designed to support demanding applications, this ESC features AM32 firmware for smooth, efficient, and precise control of motors. Its robust design ensures reliability and longevity, even under extreme conditions.
With high-quality components and advanced thermal management, the BOOST AM32 4-in-1 ESC is perfect for freestyle drones, FPV racers, and other UAV builds requiring stable and powerful motor control.

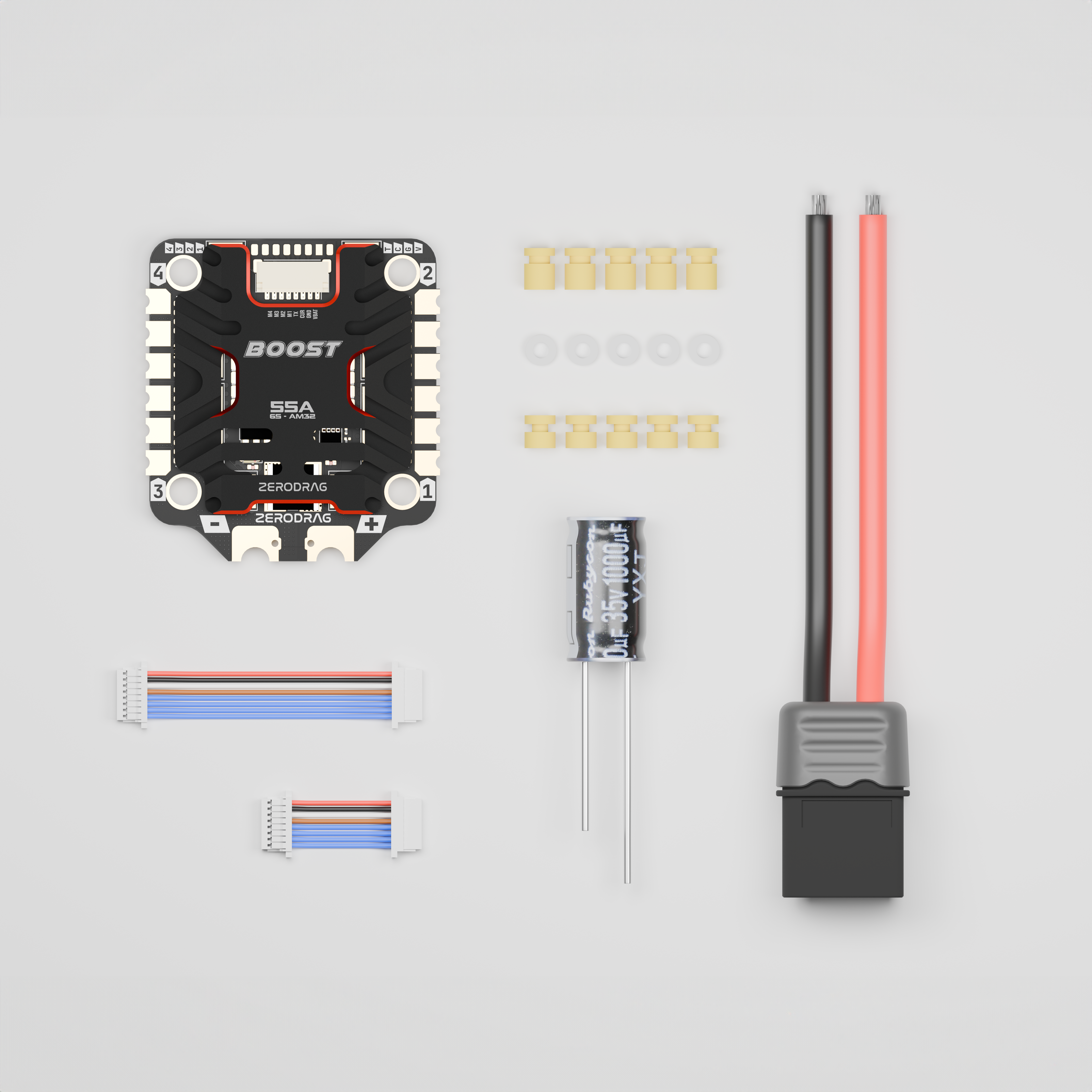

In The Box
• 1 x Zerodrag Boost AM32 55A 4-in-1 ESC
• 1 x ESC Long Cable
• 1 x ESC Short Cable
• 1 x XT60H Pigtail
• 1 x 35V 1000uF Capacitor
• 5 x Gummies (Short)
• 5 x Gummies (Tall)
• 5 x Spacers
Specifications
• Firmware: AM32
• Current Rating: 55A continuous, 65A burst
• Voltage Input: 3-6S LiPo
• MOSFETs: High-efficiency design to reduce heat generation
• Telemetry: Real-time feedback for current and RPM
• Dimensions: 45 x 41.1 x 7.5 mm
• Weight: 12.5g
• Mounting Pattern: 30.5 x 30.5mm (M3 holes)
• Connector: XT60 (power input)
• Capacitor: Includes 35V 1000uF capacitor for voltage smoothing
Features
Advanced Motor Control
• AM32 firmware delivers exceptional motor response, precise control, and smooth operation for superior flight performance.
High Current Handling
• 55A continuous current rating with 65A burst capacity ensures reliable performance in high-power setups.
Telemetry Integration
• Real-time current and RPM telemetry provide valuable insights for tuning and diagnostics.
Optimized Thermal Management
• Efficient PCB design and high-performance MOSFETs minimize heat buildup during operation, even under high loads.
Durable Build
• Built to withstand the rigors of demanding UAV applications with surge protection and robust electrical design.
The BOOST AM32 55A 4-in-1 ESC is ideal for:
• FPV Racing and Freestyle Drones
• Professional UAVs requiring high thrust and precision
• Multirotors using 3-6S LiPo batteries
The ZERODRAG BOOST AM32 ensures smooth, reliable power delivery and advanced motor control, making it the go-to choice for UAV pilots demanding performance and durability.
