ZUPPA Elevate Autopilot For Survey, Logistics & High Precision Drones

Fully Designed , Developed , manufactured in India based on
our Patented Indian DPCC technology
▪ Personalised Tech Support ensuring immediate sales of drones
▪ Can be integrated to any Mavlink based GCS like ZUPPA MavFly ,
AeroGCS , QGCS etc
▪ Autopilot proven across India from sea level to over 15,000 ft
altitude

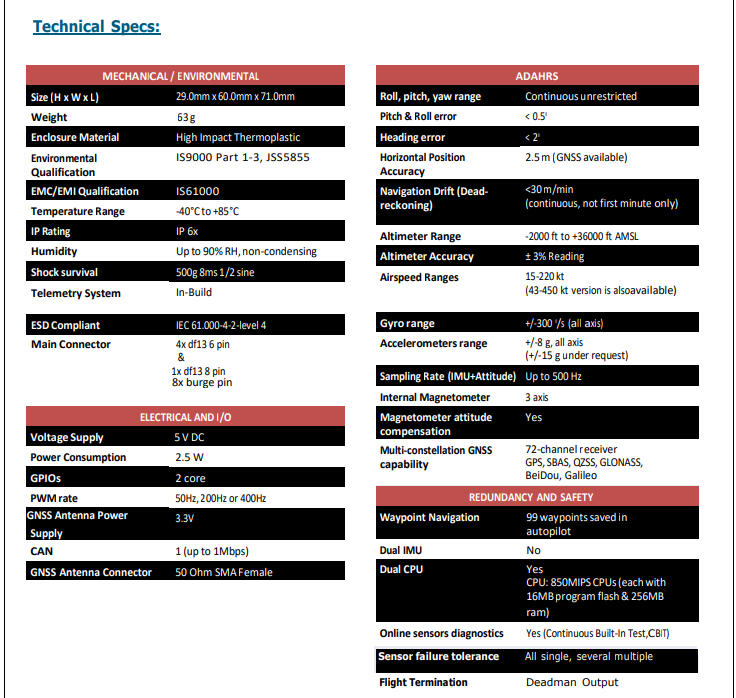

Specifications
▪ Dual GPS for Higher level Locational Accuracy
▪ Optional : Base Station integration for centimetre level accuracy
▪ 2 Powerful 32 Bit STM 32 Processors working in parallel using
ZUPPA’s Patented technology
▪ 2 barometers and IMU’s for altitude accuracy , enhanced
performance. and redundancy
▪ Plug and Fly Pre Tuned PID Gains
▪ Fully Made in India ZUPPA’s proprietary Firmware based on our
DPCC technology ensures Autopilot is the latest version always

GEN -4 Autopilot
It is equipped with an Indian-made indigenous autopilot, telemetry system, and
GCS Application, providing users with a robust platform for learning and honing their
drone piloting skills.
Key Features:
Processor: Powered by high-performance microcontroller, which provides enhanced processing capability.
Sensor: Include redundant IMUs (Inertial Measurement Units) and barometer for high
Reliability and accuracy in flight data.
Temperature Control: The IMUs are temperature-controlled, ensuring stable performance across a wide range of
operating condition.
Internal logging: Supports high-speed logging, which is crucial for post-flight analysis and tuning.
Redundancy: Includes fail-safe systems and redundant power inputs to enhance safety and reliability during
operation.
Compatibility: A wide range of peripherals, such as GPS module, telemetry radios, and various sensors, making it
suitable for a broad range of applications for hobbyist drones to professional-grade unmanned systems.
Applications:
Agriculture: For crop monitoring, spraying, and precision farming.
Commercial Drones: For applications like mapping, surveying, and inspections.
Search & Rescue: Integrated into drones used for locating and assisting in rescue operations.
Research & Development: A platform for developing and testing new UAV technologies.
Time to First Fix Cold Start: 26s. Hot Start: 1s
Functions:
• Alternative Landing Sites.
• Flown up to 35kmph.
• MULTI-UAV Operations.
• Custom and automatic actions on waypoints.
• Referenced Navigation.
• Flexible Geofencing operation.
